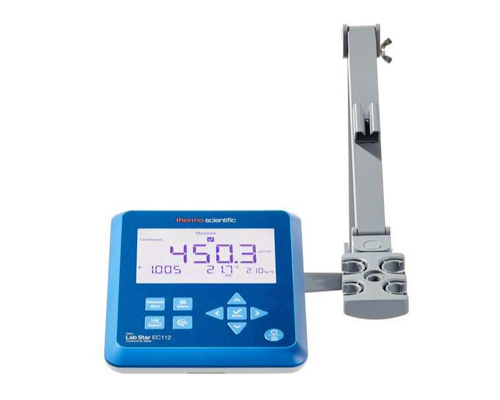

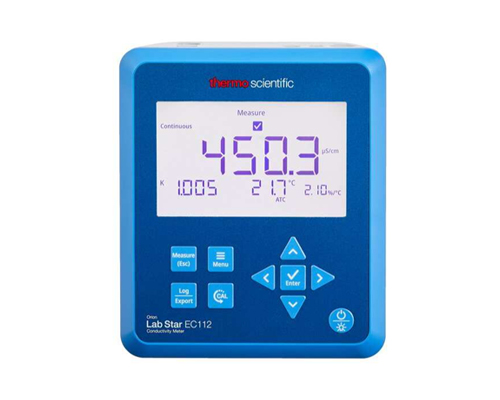

Orion Lab Star EC112 Conductivity Bench Meters
전도도 측정기
Description
· Budget-friendly conductivity meter for simplified conductivity, salinity and TDS testing
· Display shows conductivity, cell constant, temperature and temperature coefficient simultaneously for accurate data recording
· Measure 0.00 µS to 500.0 mS conductivity, 0.00 to 80.0 ppt or 0.00 to 42.0 PSU salinity, 0.00 ppm to 500.0 ppt TDS and -5.0 to 105.0 °C or 23.0 to 221.0 °F to ensure comprehensive measurement capabilities
· Perform one to five point conductivity and TDS calibrations, one point salinity calibrations and one point temperature adjustment calibrations for proficient SOP compliance
· Large 5 inch backlit display makes viewing and recording measurements easy
· Small meter footprint saves valuable bench space in your lab
· Onscreen stabilizing and ready indicators help identify when readings are complete
· Date and time data stamped data and calibration logs support GLP compliance
· View active conductivity, salinity, TDS and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
· Use 500-point data log with date and time stamp to record key measurements
· Output data and calibration logs to a printer or computer for long-term data storage
Specifications
|
| Conductivity |
Range |
0.00 μS/cm to 500.0 mS/cm |
| Resolution |
0.01, 0.1, 1 μS/cm; 0.01, 0.1 mS/cm |
| Relative accuracy |
±0.5% reading ±1 LSD |
| Calibration points |
1 to 5 points |
| Temperature compensation |
Linear (0 to 10%/°C) or off |
| Reference temperature |
15.0, 20.0, 25.0 or 30.0°C |
| TDS |
Range |
0.00 ppm to 500.0 ppt (1.00 factor) |
| Resolution |
0.01, 0.1, 1 ppm; 0.01, 0.1 ppt |
| Relative accuracy |
±0.5% reading ±1 LSD |
| Calibration points |
1 to 5 points |
| TDS factor |
0.40 to 1.00 |
| Salinity |
Range |
0.00 to 80.0 ppt; 0.00 to 42.0 PSU |
| Resolution |
0.01, 0.1 ppt; 0.01, 0.1 PSU |
| Relative accuracy |
±0.5% reading ±1 LSD |
| Calibration points |
1 point |
| Modes |
Natural seawater or practical salinity |
| Temperature |
Range |
–5.0 to +105.0°C (+23.0 to +221.0°F) |
| Resolution |
0.1°C; 0.1°F |
| Relative accuracy |
±0.3°C, ±0.5ºF |
| Input |
Manual or automatic with built-in ATC |
| Calibration points |
1 point, ±5°C |
| Meter features |
Display |
5 in. LCD with backlight |
| Date and time |
Yes |
| Read types |
Continuous, auto-read, timed |
| Data log |
500 sets with time and date |
| Calibration log |
Conductivity, TDS, salinity and temperature with time and date |
| Data output |
Computer or printer |
| Calibration due alarm |
1 to 168 hours or off |
| Alarms |
Visual and on/off audible |
| Memory |
Non-volatile |
Orion Lab Star EC112 Conductivity Bench Meter Models
Pair the meter and stand with your own conductivity probe and standards or choose the preconfigured kit to get everything you need.
| Cat. No. |
Description |
| LSTAR1120 |
Orion Lab Star
EC112 Conductivity Bench Meter, includes
• Meter with electrode stand
• Computer cable
• 100 to 240V, 50/60Hz universal power adapter with twist-and-lock connection |

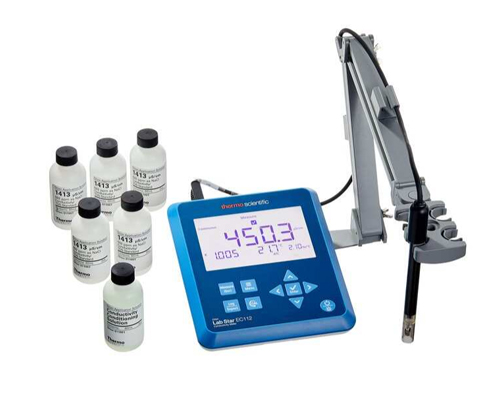

| LSTAR1125 |
Orion Lab Star
EC112 Conductivity Bench Meter standard kit, includes:
• Meter with electrode stand, computer cable and universal power adapter
• 2-cell epoxy-body conductivity/ATC probe, K = 1.0 (Cat. No. 011050MD)
• 1,413 µS conductivity standard, 5 x 60 mL (Cat. No. 011007) |
