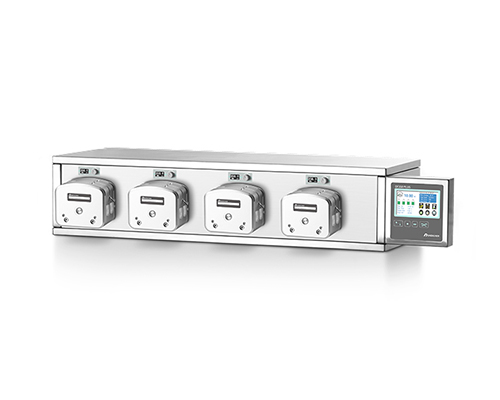

DF350 Plus Integrated Filling System
DF350 Plus 통합 충진 시스템
Features
통합 설계 : 하나의 컨트롤러로 8개의 그룹(총 32개)을 제어할 수 있습니다
생산 충진 라인 지원 : 자주 사용하는 30가지 모드를 저장할 수 있습니다
독립적 제어: 각 헤드는 병이 없을 경우 개별적으로 중지 신호를 받을 수 있습니다
응용 분야 : 의약품, 건강 제품, 시약 조제, 식품, 화장품 산업
Specifications
| Drive |
Pump Head |
Flow Rate (mL/min) |
Motor Type |
Drive Dimension (L×W×H) |
Power Consumption |
Drive Weight |
| DF350 Plus |
DY15 |
0.01-3337 |
Closed-loop stepper motor |
283×192×196mm |
Each unit<180W |
7.8kg |
| DY25 |
0.42-4340 |
| Product Composition and Flow Rate Range |
| Drive |
Pump Head |
Pump Head Material |
Tube Clamp Material |
Tubing |
(Motor Speed 0.1~600rpm)
Flow Rate mL/min |
| Tubing Size |
ID×Wall Thickness |
| DF350 Plus |
DY15 |
Aluminum Alloy PPS |
PP |
13# |
0.8×1.6 (mm) |
0.01~48 |
| 14# |
1.6×1.6 (mm) |
0.06~223 |
| 19# |
2.4×1.6 (mm) |
0.13~448 |
| 16# |
3.1×1.6 (mm) |
0.2~723 |
| 25# |
4.8×1.6 (mm) |
0.47~1626 |
| 17# |
6.4×1.6 (mm) |
0.64~2230 |
| 18# |
7.9×1.6 (mm) |
0.95~3337 |
| DY25 |
Aluminum Alloy PPS |
PP |
15# |
4.8×2.4 (mm) |
0.42~1480 |
| 24# |
6.4×2.4 (mm) |
0.76~2670 |
| 35# |
7.9×2.4 (mm) |
0.1~3600 |
| 36# |
6.4×2.4 (mm) |
1.24~4340 |
| Speed range |
0.1-350 rpm |
Keypad lifetime |
300,000 times |
| Filling volume range |
0.01-9999.99 mL |
Start/stop, direction signal |
Passive switch signal, such as foot
pedal switch; Active switch signal: 5-24V universal |
| Filling time range |
0.1-9999.99 s |
| Pause time range |
0.1-9999.99 s |
Communication interface |
RS485 communication
Modbus protocol (RTU mode) |
| Filling volume resolution |
0.01 mL |
| Time resolution |
0.01 s |
Output interface |
Output motor working status
(Open-Collector output) |
| Copy numbers |
1-9999 times, 0 represent unlimited |
| Back suction angle |
0-3600° |
Power supply |
AC 220V±10% 50Hz/60Hz (standard)
AC 110V±10% 50Hz/60Hz (optional) |
| Filling accuracy |
<±0.5% |
| Display |
4.3" industrial grade true color LCD screen |
Condition temperature |
0-40℃ |
| Control method |
Touch screen and mechanical keypad |
Relative humidity |
<80% |
